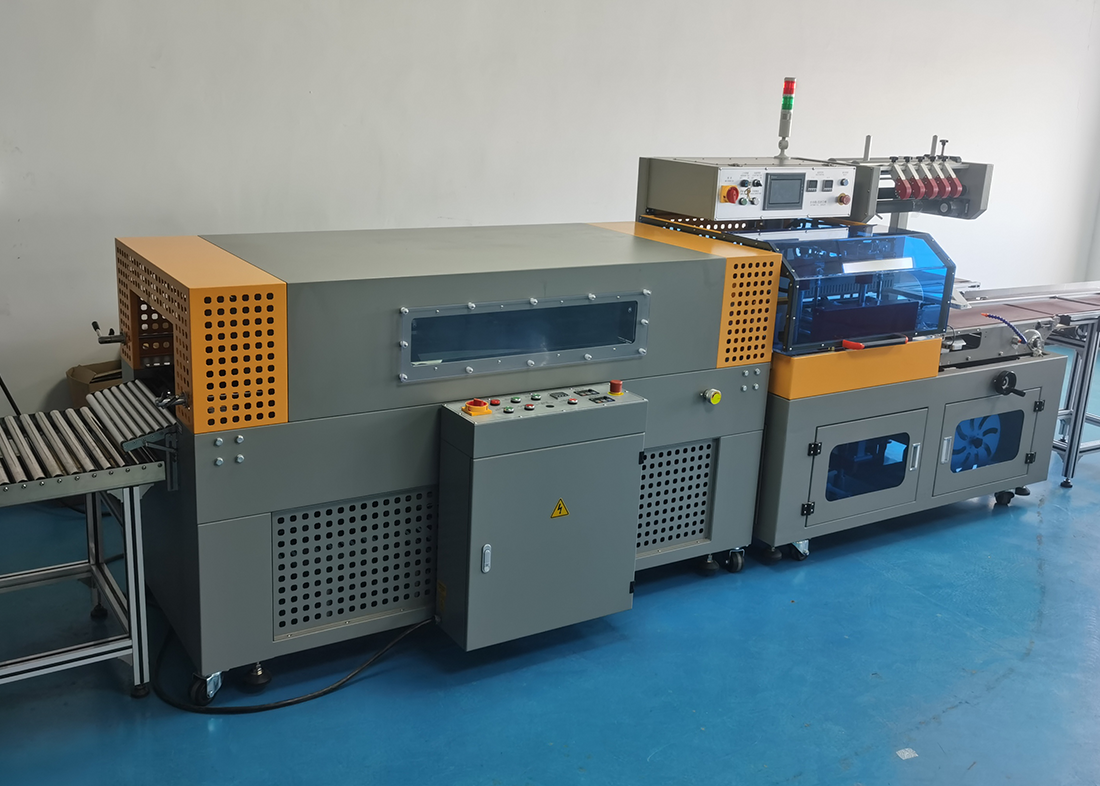

Auto Vertical L Bar Stype Sealer Heat Shrink Wrapping Machine
Products Details
| Products Name | Vertical L Bar Stype Sealer Heat Shrink Wrapping Machine | Model Number | ZSL-5675 + T-6030 |
| Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company | Usage | Food, Beverage, Commodity, Medical, Chemical, Machinery Hardware, APPAREL, Textiles, Box, Book, Food, Cosmetics, Electronic Product, Etc. |
| Driven Type | Electric | Material | Carbon Steel + Powder Painting |
| Core Components | PLC, Motor, Bearing, Frequency Converter | Automatic Grade | Automatic |
| Place of Origin | Guangdong, China | Machine Langue | Optional |
| Air Compressing | 5.5-8.5kg/cm3 | Warranty | 1 Year, 1 Year except consuming spare parts |
| After-sales Service Provided | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | After Warranty Service | Video technical support, No service, Online support, Spare parts, Field maintenance and repair service |
Technical Specification

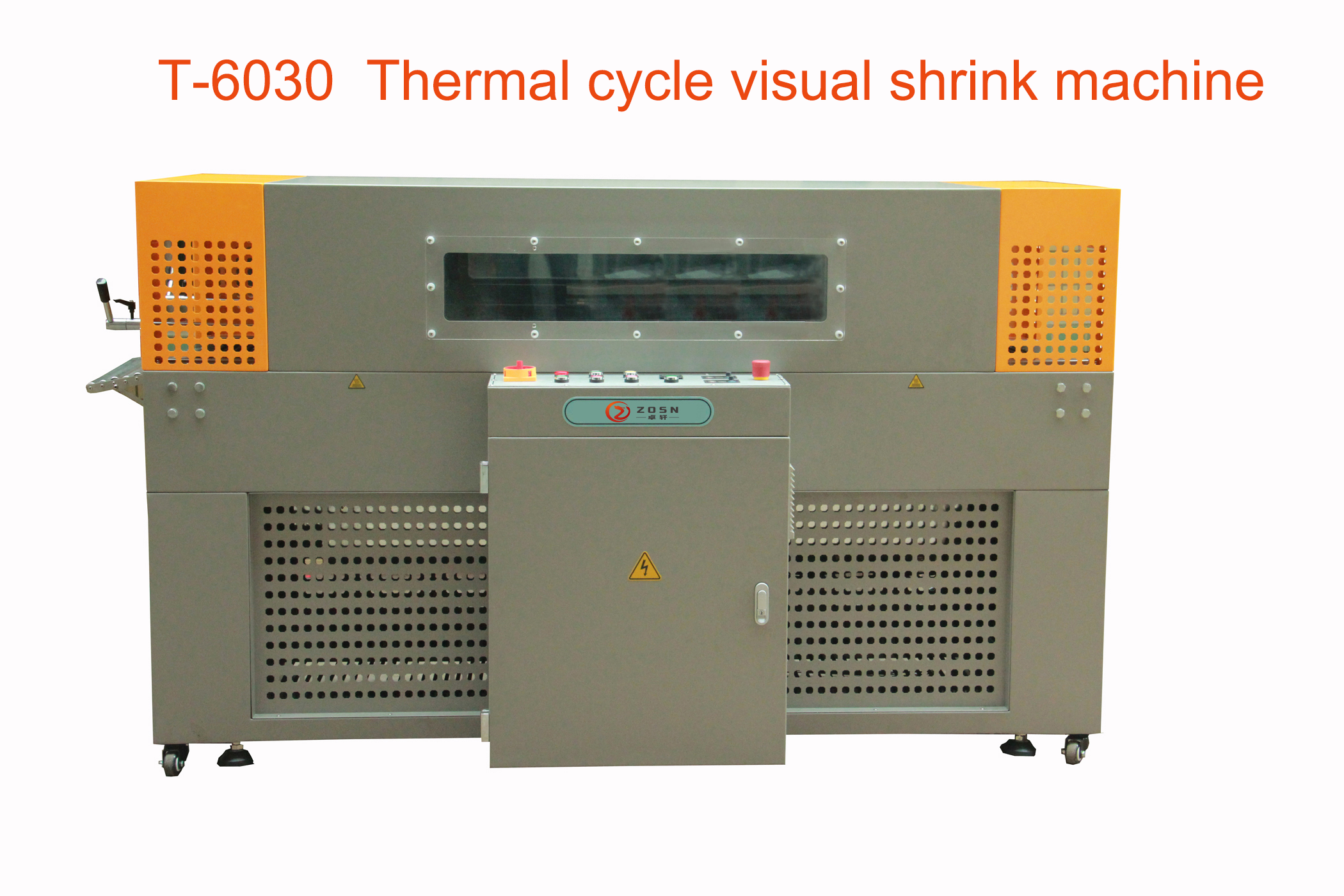

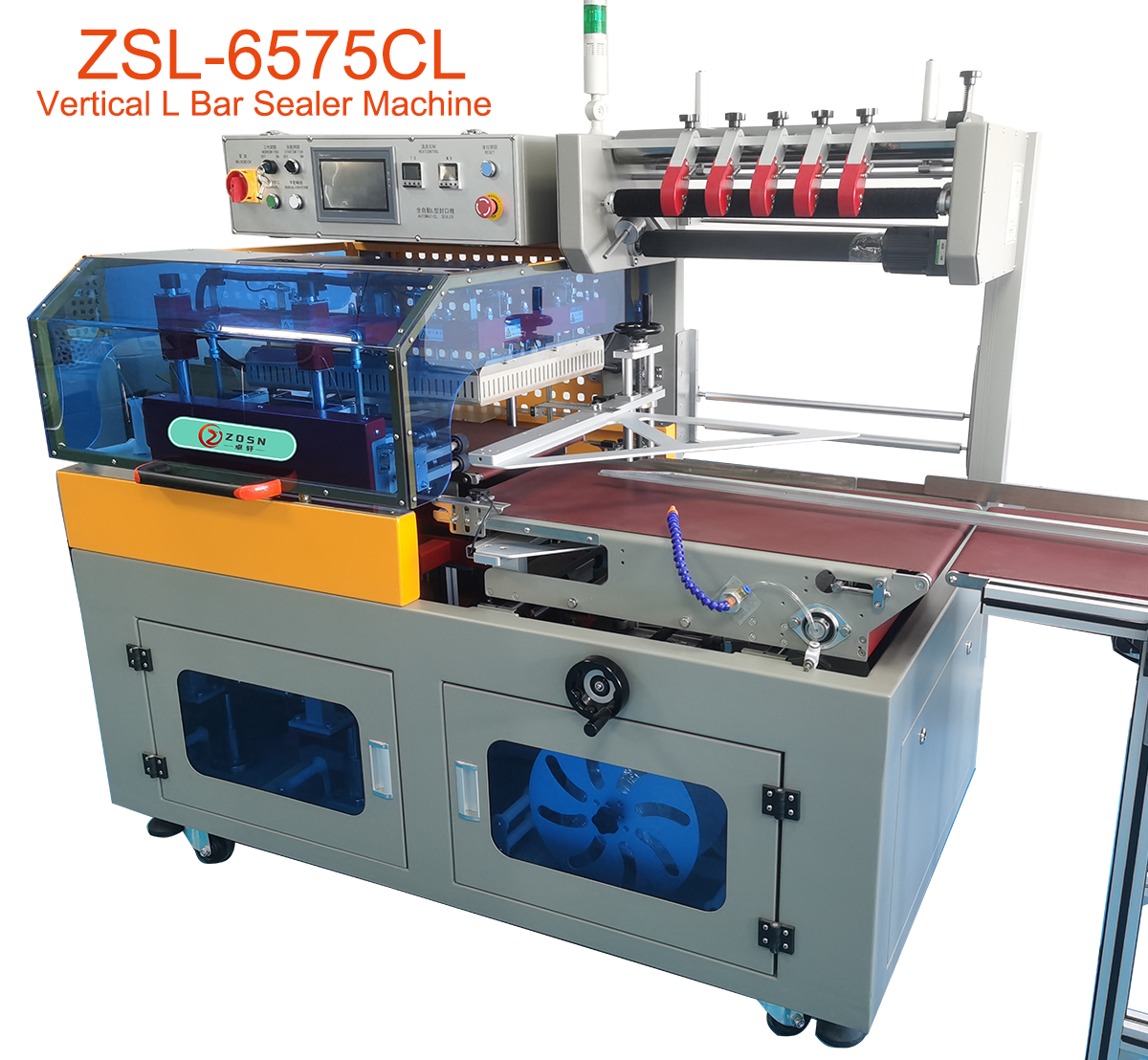

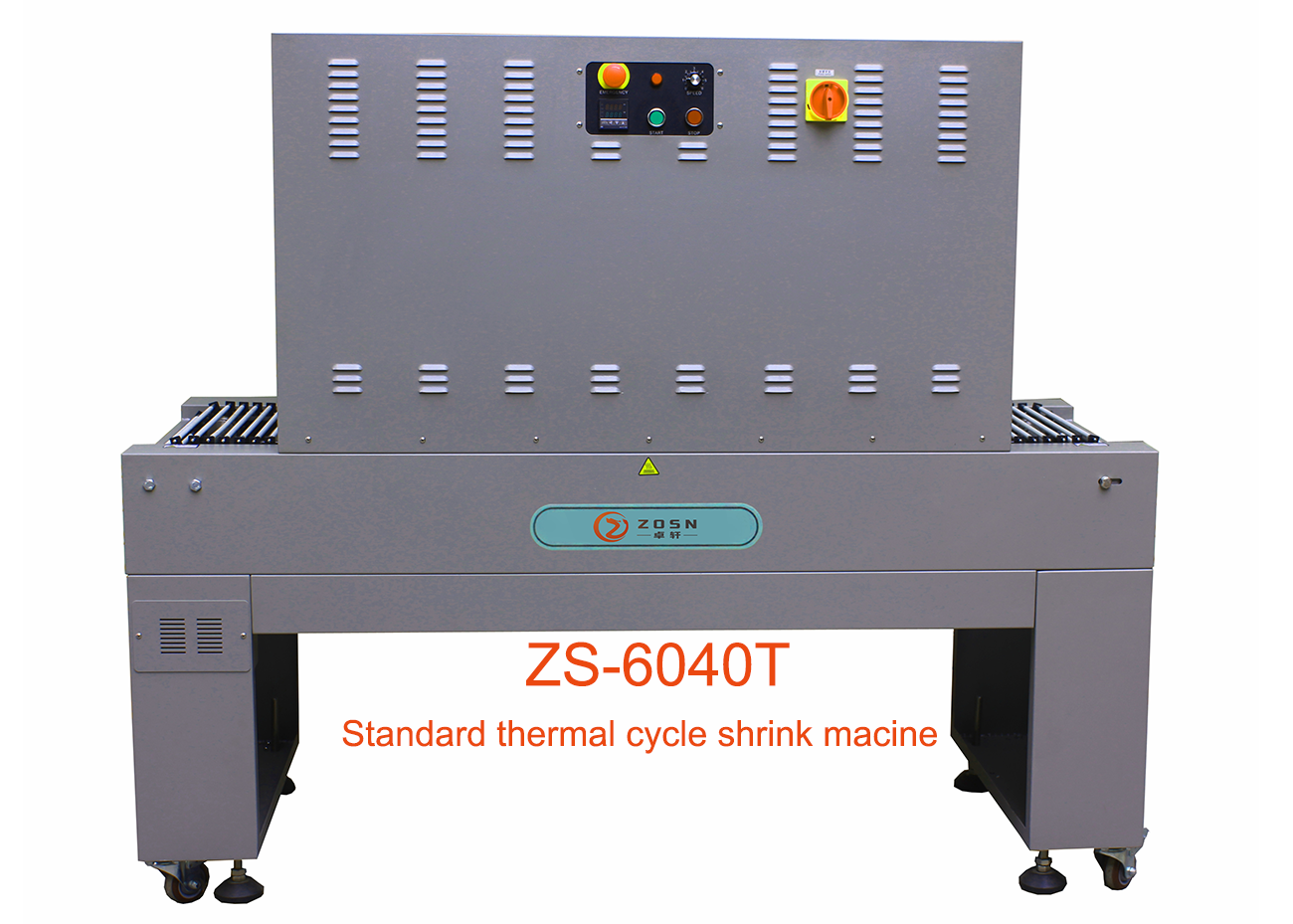

| Model Name | ZSL-6575CL Vertical Sealer Machine | T-6030 Thermal Cycle Visual Shrink Machine | ZT-6040 Thermal Cycle Shrink Machine |
| Power Source | AC220V 3.3KW | AC380V 18KW | AC380V 15KW |
| External Dimension | L2160*W1690*H1380MM | L2000*W1150*H1230MM | L2000*W800*H1660MM |
| Cutter size / Tunnel size | 650*750MM | L1500*W600*H300MM | L1200*W600*H400MM |
| Temperature | 0-230°C Adjustable | 0-200°C Adjustable Wind Direction And Speed | 0-200°C Adjustable |
| Film | POF, PE, PVC | POF, PE, PVC | POF, PE, PVC |
| Packing Size | W + H ≤ 520mm, L + H ≤ 700mm, H ≤ 220mm, L ≥ 100mm | W ≤ 500mm H ≤ 250mm, W + H ≤ 580mm | W ≤ 530mm H ≤ 350mm, W + H ≤ 580mm |
| Packing Speed | 15 - 40 Pcs / Minute | 0-30 Meters / Minute | 0-30 Meters / Minute |
Product Features
1. Two sets of horizontal sensors automatically compensate for item length change, meanwhile vertical sensors prevent from accidental cutting.
2. Separate motor is used to control the auto winding device, which make the waste film is not too loose or too tight to crack. The waste film can be easily removed.
3. Film up-down synchronization mechanism specially designed to correct the deviation film.
4. Film micro perforation during the film unwinding to make air escape rapidly and get good shrinking effect.
5. Film-roll holder at the bottom of the machine guarantee the machine chassis stability.
6. Different brands of shrink film is acceptable, PE film as an option.
Mitubshi PLC: Adopted Mitubshi pl, Easy operation and stable, also convenient to get the replacement part in your lacation.

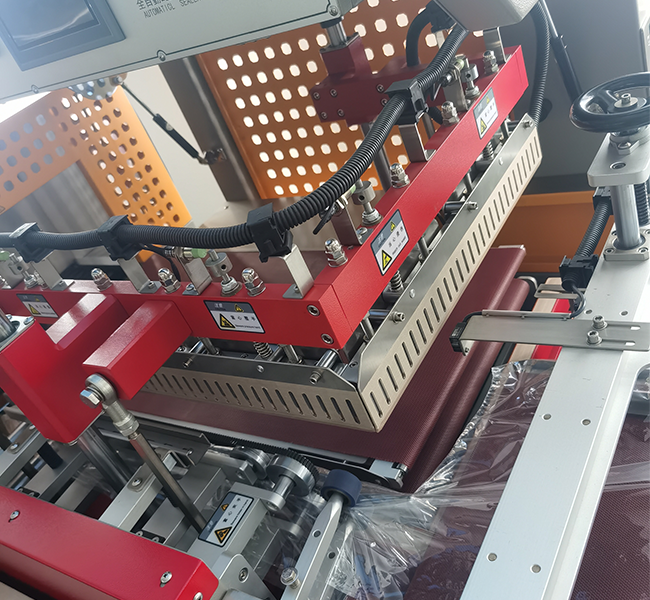

Heating Sealing Blade: Teflon printed sealing blade, without gaps and plastic sticker.
Touchable Screen: It’s easy for you make setting check the running status and errors also with solved solutions on it.
Sample: The vertical sealing height is adjustable to the height of the product, allowing for the sealing line to be in the center of the package.
Delivery Time
1. We can send out the machine within 30 days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.
Warranty
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours
Looking for cooperative agents
Our machines is mainly exported to Swiss, Germany, Australia, New Zealand, Canada, Poland, Mexico, Brazil, Argentina, Korea,Indonesia, Malaysia etc.We are sincerely looking for cooperation agents. If you are interested in our machines, you can contact us directly .
